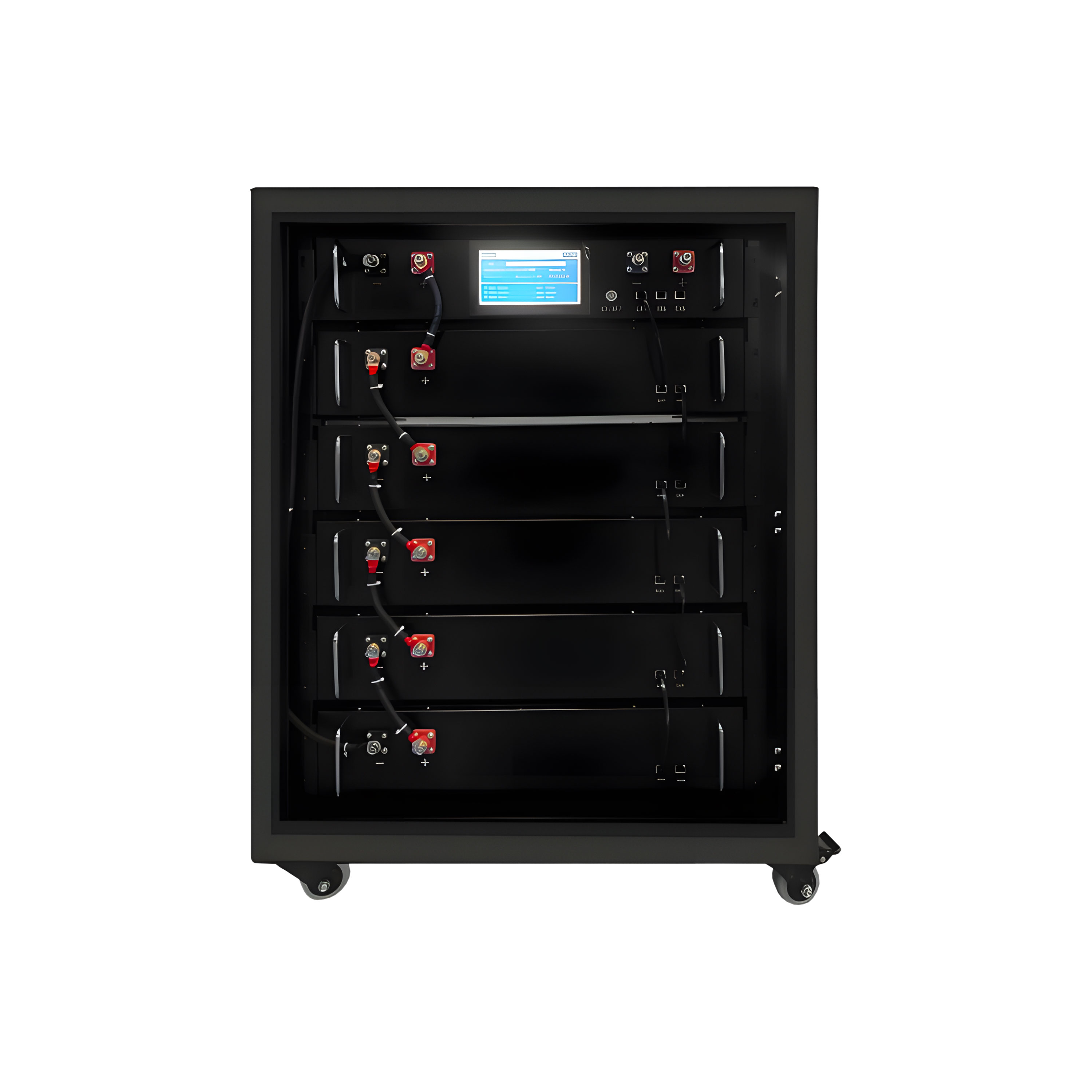

192V 200Ah High Voltage Storage Lithium Battery

High-voltage lithium battery refers to a polymer lithium battery whose upper charging limit voltage is higher than that of conventional lithium battery. The upper charging limit voltage of conventional lithium battery is usually 4.2V, while that of high-voltage lithium battery can reach 4.35V or even 4.4V.


Under the same discharge time and capacity, the discharge time of high-voltage lithium battery is longer than that of conventional lithium battery, thus extending the battery life.

High-voltage lithium battery has higher energy density, which enables it to release more capacity under the same use conditions, providing longer battery life and stronger power.

The discharge platform of high-voltage lithium battery is high and stable, and it will not affect the battery life even under frequent use.


Parameters

Specification
192V 200Ah384V 300Ah
Capacity38.4KWk
115.2KWh
Max. Discharging Current
100A150A
Working Voltage Range168-219V336-438V
Rated Voltage192V384V
Max. Charging Current100A150A
Dimension725*561*926mm1000*773*1365mm
Net Weight
315KGS1250KGS

Recommend Dischaging

Deep Cycle

Times of Deep Cycle 3000@DOD 80%/25℃/0.5C
Working Temperature-10℃~50℃
Working Humidity
65+/-20%RH
Working Altitude≤2500m
Cooling ModeNatural Cooling
Installation Way
Hang Wall/Standing
Protection Grade
IP20
Maximum Parallel Quantity15PCS
Warranty5-6 Years
Telecommunte WayRS485/CAN
CertificationsCE EMCEOHS IEC62619 UN38.3 MSDS
